生態水循環係統
適用於石材和陶瓷切割及製造行業
我們為石材行業設計的水循環係統是一種先進且高效的解決方案，旨在優化生產過程中的水資源利用。該係統尺寸緊湊，長 11.8 英寸，寬 8.5 英寸，高 7.9 英寸，重量為 6000 磅，功能強大且易於在任何工業環境中安裝。
該係統配備有壓濾機，有 8 塊濾板，可實現高效的過濾和雜質去除。這確保了回收水的清潔，可隨時用於生產過程中的再利用。此外，它還配有潛動泵和相關傳感器，用於收集生產過程中產生的汙泥，便於對其進行安全、高效的管理與處理。
For the Stone and Porcelain Cutting and Manufacturing Industry

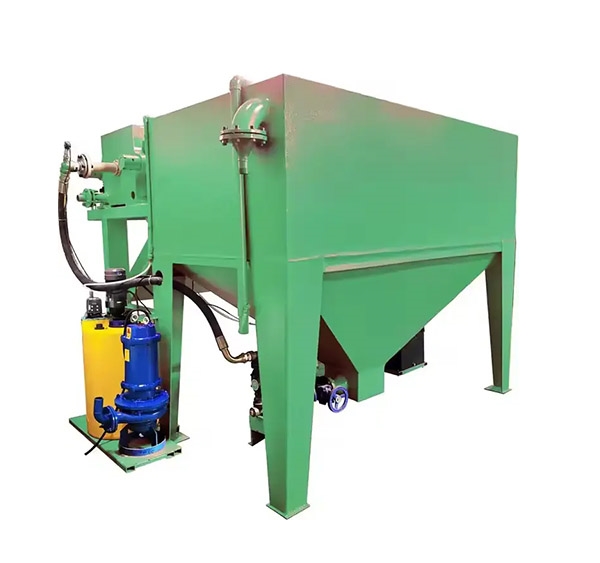

Our water recycling system for the granite industry is an advanced and efficient solution designed to optimize the use of water in the production process. With compact dimensions of 11.8” long, 8.5” wide, and 7.9” high, and weighing 6,000 lb, this system is highly functional and easy to install in any industrial environment.
The system is equipped with a filter press, which has 8 plates for maximum efficiency in filtration and removal of impurities. This ensures that the recycled water is clean and ready for reuse in the production process. In addition, it has a submerged pump and a relative sensor to load the sludge generated during the process, which facilitates its management and disposal in a safe and efficient manner.
優點：
* 配備 8 個濾網，一體化設計
* 包含加壓泵，以維持澄清水的壓力
* 操作直觀的觸摸屏，具備自動每日工作循環功能
* 閉合式循環水回收係統
Advantage:
* Equipped with 8 plates, all-in-one design
* Pressurized pump included to maintain the pressure of the clarified water.
* Intuitive touch screen with automatic daily work cycles.
* Closed loop water recycling.
Maximize water savings on each job 在每項工作中最大限度地節約用水
|
Technical Data
|
|
Material 材料
|
Steel 鋼鐵
|
|
Usage 用法
|
Water Recycling for Stone Fabrication 石材製造中的水循環利用
|
|
Size 尺寸
|
As the above marks. Other sizes can be customized. 如上所示。尺寸也可根據需求定製。
|
組件
* 自動過濾壓榨機 - 快速開啟振動篩，10 塊板，尺寸：500x500x50 毫米，每次出渣量：75 千克
* 空氣隔膜進料泵
* 汙泥濃縮器集水箱 - 4 立方米
* 豎式空氣壓縮機
* 自動計量泵
* 塑料桶 - 100 升
* 浸沒式泥漿泵 - 升揚高度：30 米，功率：4 千瓦
* 電機：3 千瓦
Companents
* Automatic filiter press - quick opening vibrating decake,
10 plates, size: 500x500x50mm, Cake output: 75kgs/time
* Air diaphragm feed pump
* Sludge concentrator setting tank - 4m3
*
Vertical air compressor
* Automatic dosing pump
* Plastic drum - 100L
* Submerged slurry pump - lift: 30m, power: 4kw
* Motor：3 kw
Benefits of Using a Filter Press and Recycling Water
* Very Inexpensive Equipment
* Safe and Easy to Operate
* Lower Maintenance Costs
* Easily to Scale and Expand for Production
* Very Fast Extractions
* Save Money on the Cost of Water
* Save Money on Sewage and Disposal Costs
* Closed Loop, zero-discharge Solution
Application Fields:
* Miningoperations and aggregate
* Marble and stone cutting
* “Ready-mix” concretewashout water recovery
* Food & beverage production
* Medicine
* Chemical Manufacturing
* Paper making
* Textile, printing & dyeing
* Metallurgy
* Sewage treatment
應用領域：
* 采礦作業及礦石開采
* 石材切割
* “預拌”混凝土衝洗水回收
* 食品與飲料生產
* 醫藥
* 化學製造
* 紙張製造
* 紡織、印刷與染色
* 金屬加工
* 排水處理
Filtered Cakes
溫馨提示：如果想了解更多細節，規格、標準、價格和解決方案，請聯係我們。
