所屬類別:板材打磨設備
![]()
![]()
![]()

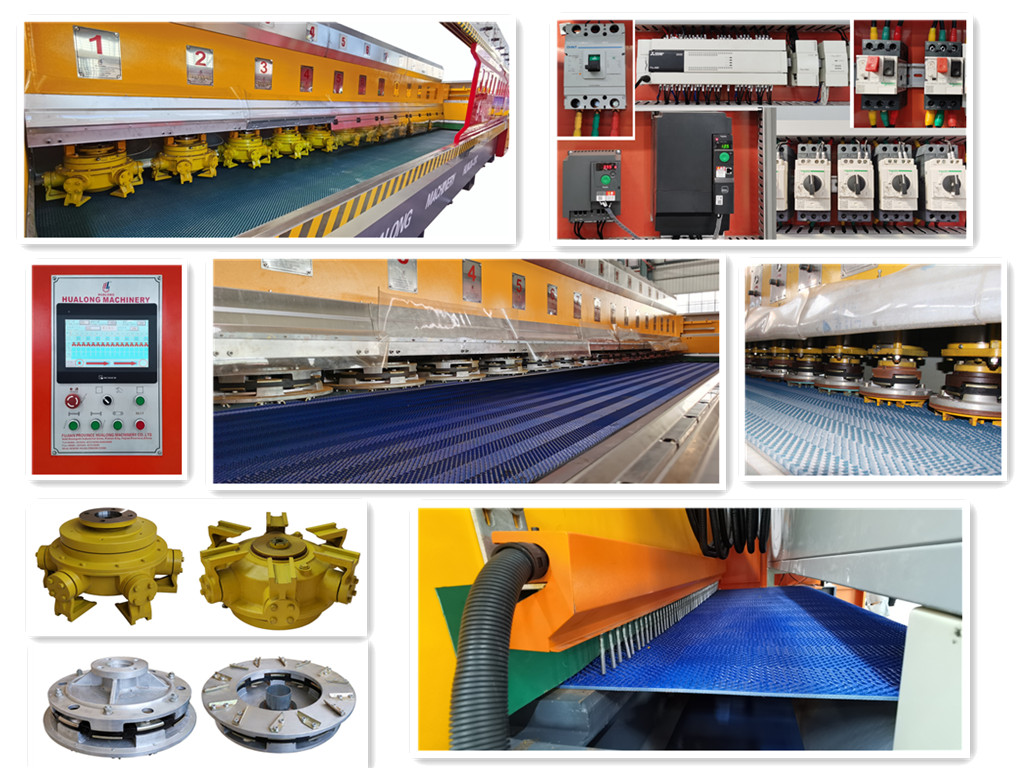

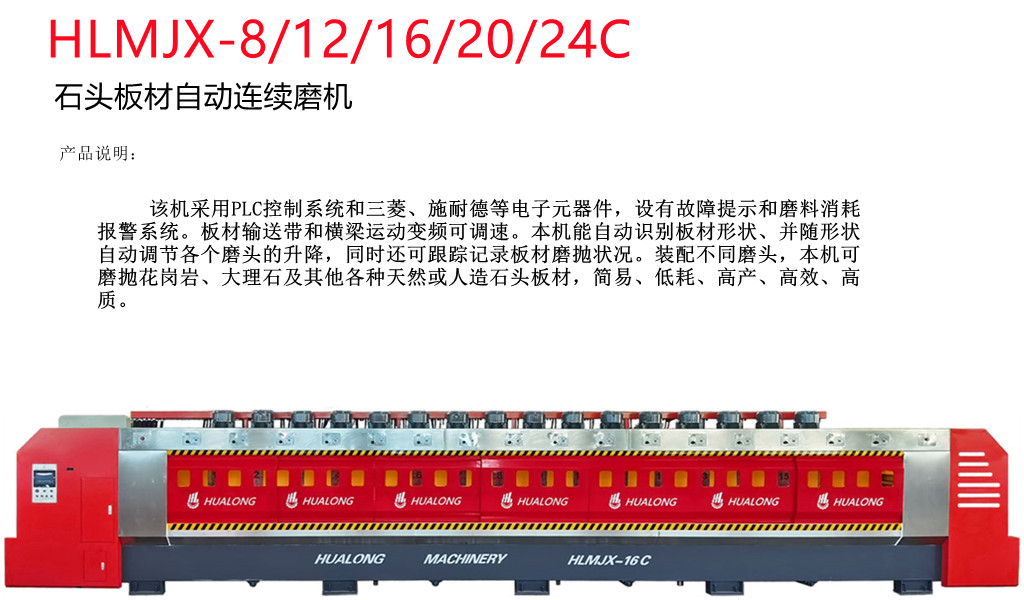

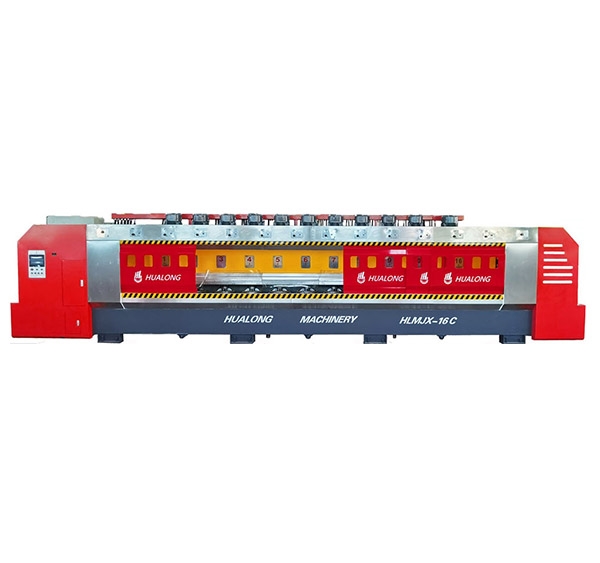

HLMJX-16 型自動石材板材連續拋光機,配備多個樹脂盤頭和 PLC 控製係統,能夠連續自動地對板材進行研磨和拋光,是花崗岩等硬質石材表麵處理的理想選擇。安裝不同類型的頭,它也非常適合大理石、石英岩和其他石材板材的加工。

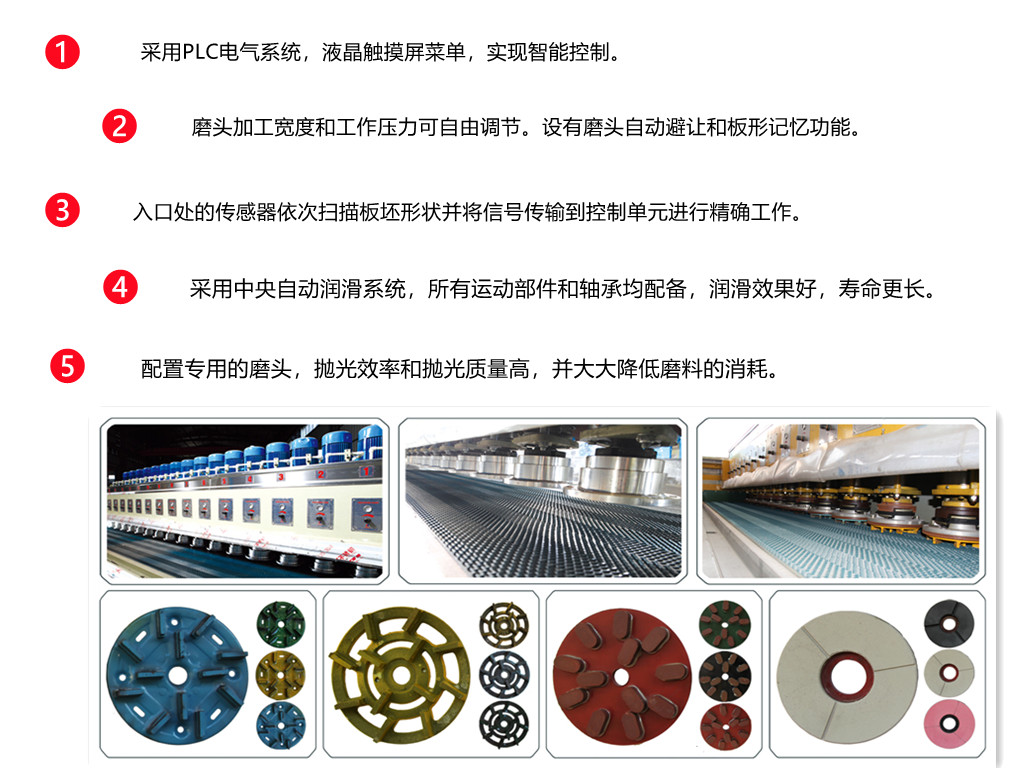

主要特點
1)采用 PLC 電氣係統和 LCD 屏幕菜單實現智能控製。
2) 拋光輪的加工寬度和工作壓力可自由調節。
3)入口處的傳感器依次掃描板坯的形狀,並將信號傳輸給控製單元以實現精確作業。
4)采用中央自動潤滑係統,使所有運動部件和軸承都能獲得良好的潤滑效果,延長使用壽命。
5)輸送帶自清潔及石屑清除係統
Automatic Stone Line Polishing Machine
Main FeaturesHLMJX-16,equipped with multiple resin disc heads and PLC control system, can grind and plolish slabs continously and automatically, is perfect for surface finishing of hard stone such as granite. Mounted with different type of heads, it’s also great for marble, quartize and other stone slab finishing.
1) Using PLC electrical system and LCD screen menu offer intelligent control.
2) Processing width and working pressure of grinding heads can be adjusted freely .
3) Sensor at the entrance to scan the shape of the slabs in sequence and transmit the signal to controlling unit for precise working
4) Adopting central automatic lubrication system, having all moving parts and bearings to get a good lubricating effect and longer life.
5) Conveyor self-cleaning and stone chip removing system
名稱 | 單位 | HLMJX-8 |
HLMJX-12 |
HLMJX-16 |
HLMJX-20 |
HLMJX-24 |
HLMJX-12C |
HLMJX-16C |
HLMJX-20C |
磨頭數 | Nº | 8 | 12 | 16 | 20 | 24 | 12 | 16 | 20 |
可磨板材寬度 | mm | 300-1300 |
300-1300 |
300-1300 |
300-1300 |
300-1300 |
400-1300 |
400-1300 |
400-1300 |
可磨板材厚度 | mm | 10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-80 |
10-80 |
10-80 |
皮帶進給速度 | mm/min | 0-3500 |
0-3500 |
0-3500 |
0-3500 |
0-3500 |
0-3800 |
0-3800 |
0-3800 |
磨頭總功率 | kw | 7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
15 | 15 | 15 |
總功率 | kw | 75 | 105 | 135 | 165 | 195 | 201 | 261 | 321 |
耗水量 |
m³/h |
15 | 17 | 20 | 23 | 25 | 20 | 25 | 30 |
外形尺寸 | mm | 5600x2200x2300 | 6800x2200x2300 | 8000x2200x2300 | 9200x2200x2300 | 10400x2200x2300 | 9700x2200x2650 | 11800x2200x2650 | 1400x2200x2650 |
整機重量 | kg | 10000 | 12000 | 14000 | 16000 | 1800 | 21000 | 25000 | 32000 |
溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯係我們。
